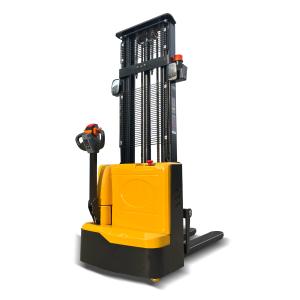

KAD CDDW1630 Electric Pallet Stacker 1600kg Load 3000mm Lift

Place of Origin : Jiangsu, China

Brand Name : KAD

MOQ : 1

Price : $1,285-1,680

Fork Length : 1070mm

Fork Width : 550/680mm

Load Center : 500mm

Load Weight : 1500KG

Battery Voltage : 24V

Battery Capacity : 80Ah

Battery Type : lead acid

Min Lifting Height : 2080mm

Overall Dimensions : 1770x850x2080mm

Weight : 500kg

Driving Speed : 5.0mm/s

Lifting Speed : 140/135mm/s

Descending Speed : 150/155mm/s

Driving Motor : DC/0.75KW

Lifting Motor : DC/2.2KW

Contact Now

Product Description

Product Application

CKAD CDDW1630 1600kg 3000mm electric pedestrian stacker hydraulic walkie forklift

In small warehouses, production or retail environment,which is the entry level stacker you need to optimist your daily working routine. Due to its very small dimension, this stacker plays out its strengths in limited spaces.It can operate in narrow space, easy to operate and save much labor.

KAD CDDW1630 Electric Pallet Stacker 1600kg Load 3000mm Lift

Main Features

1) Using Curtis controller,which can be serviced by any forklift service company around the world.

2) With its integrated charger it gives you the flexibility you need in a modern, urban supply chain.

3) Maintenance-free batteries,no need to add water.

4)High strength fork

Specification

MODEL					CDDW10 CDDW15
Features	Drive system			Battery
	Features	Driving mode			Walkie
		Load Capacity	Q	KG	1000
		Load Center	C	MM	500
Weight	Weight(With battery)		KG	480/495/515/535
Wheels	Material			PU
Size	Lifting Height	H3	MM	1600/2000/2500/3000
		Lowest Mast	H1	MM	2080/1580/1830/2080
		Max.Height when operating	H4	MM	2080/2730/3230/3730
		Min.Height of Fork	H13	MM	≤90
		Length	L1	MM	1770
		Width	B1	MM	850
	Size	Fork Length	L	MM	1070
		Wheelbase	Y	MM	1250
		Fork Outside Width	B5	MM	680
		Fork Inside Width		MM	305
		Min.Turning Radius	WA	MM	1390
Performance	Driving Speed （Empty/Full Load）		MM/S	5.0/5.0
		Lifting Speed （Empty/Full Load）		MM/S	140/135
		Descending Speed （Empty/Full Load）		MM/S	150/155
		Max.Gradient （Empty/Full Load）		°	7/5
		Brake			Electromagnetic brake
	Driving Motor		KW	DC/0.75
		Lifting Motor		KW	DC/2.2
Battery	Capacity		V/Ah	24/80Ah

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas if become our distributor

FEEDBACK

Main Features

1) Using Curtis controller,which can be serviced by any forklift service company around the world.

2) With its integrated charger it gives you the flexibility you need in a modern, urban supply chain.

3) Maintenance-free batteries,no need to add water.

4)High strength fork

Main Parts

Name: Control Handle

Brand: KAD

Domestic famous control handle,functional buttons, can control UP/DOWN, FORWARD/BACKWARD sensitively. Using Curtis brand accelerator to ensure the safe operating.

Night operation lights

It can play a great role in warehouses with insufficient lighting.

Reverse rearview mirror and buzzing sound.

Some companies, in order to save costs, do not install this safety device on walkie stacker. We
have added safety devices while ensuring a price advantage.

Durable mast

High strengthen durable mast, which is 3-stage and support heavy load at 4-4.5m

Q1. What is your terms of packing? A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters. Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU. Q4. How about your delivery time? A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order. Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q6: How do you make our business long-term and good relationship? 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
